OTR TPMS(TM508T6/SH-L)

Designed for:

Mining vehicles



Go to buy
【Monitor Features】

1、Reliable and easy to install.

2、Large LCD screen.

3、Built-in rechargeable lithium battery.

4、Vibration awakening.

5、Automatical backlight.

6、Configurable high/low pressure warnings.

7、Configurable high temperature warnings.

8、Visible and audible alerts.

9、Selectable pressure units ( BAR, PSI ).

10、Temperature unit selectable (℃, ℉)

11、Monitors up to 22 tires maximum.

12、Long range between monitor and sensors.

13、Individual configuration of axle high/low pressure warnings.

14、Awake sensor to program ID code.

【Monitor specifications】
Operational Temperature Storage Temperature Charge Input Voltage Frequency Size Weight
-20 to +80° C -30 to +85° C DC 8 to 30 V 433.92MHz 116 ( L ) x 68 ( W ) x 25 ( H ) mm 138 g

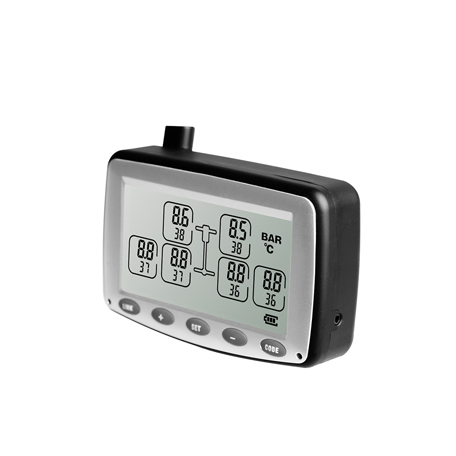

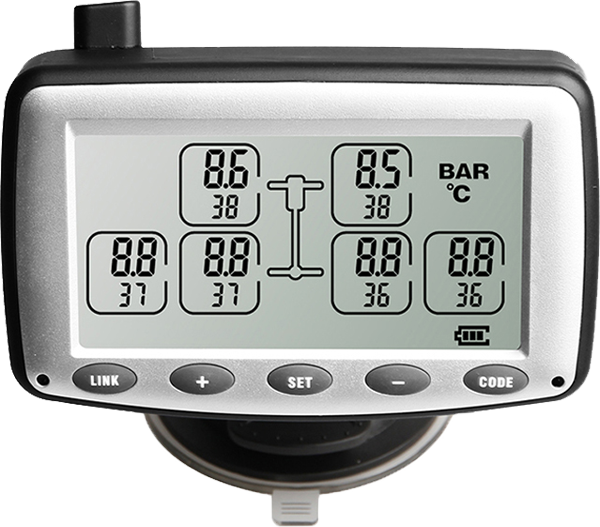

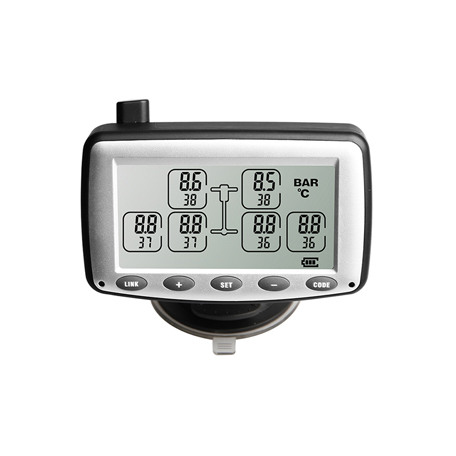

【Monitor picture】
【Sensor Features】

1、Reliable cap sensors, easy to install.

2、Water resistant.

3、Replaceable sensor batteries.

4、Sensors transmit pressure and temperature data every 5 minutes.

5、Fast leakage alert.

6、Individually coded sensors.

7、Anti-theft design.

【Sensor specifications】
Pressure range Transmission power Transmission frequency Battery life
0 to 13 bar, 0 to 188psi < 10dBm 433.92MHz 2 years (Sensor battery replaceable)
Operating temperature Size Weight --
-40 to +85° C Diameter:24mm Height:19.5mm 30 grams --

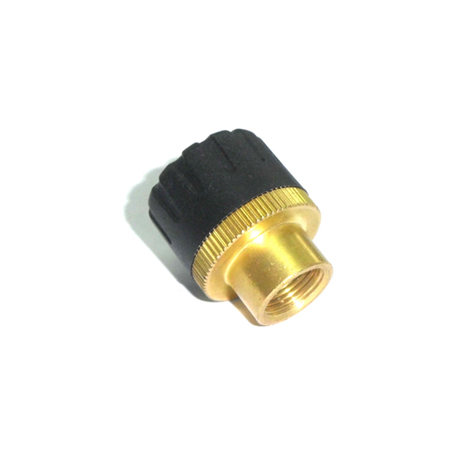

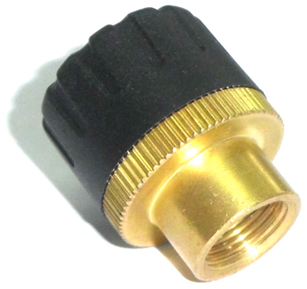

【Sensor picture】
【Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent】
