Motorcycle TPMS(MB-3/SO)

Designed for:

3 wheels bicycles

3 wheels motorcycles

3 wheels karts



Go to buy
【Monitor Features】

1、1.5V AAA battery

2、Long battery life.

3、Reliable and easy to program.

4、LCD displays 3 tires' pressure or temperature simultaneous.

5、Pressure and temperature alert adjustable.

6、Vibration, Visible and audible alerts.

7、Selectable temperature units ( ℃ or ℉ ).

8、Long range between sensors and monitor.

9、Selectable pressure units (PSI, BAR).

10、Long range between sensors and monitor.

11、Fast leakage alert

【Monitor specifications】
Operating voltage Frequency Operating temperature Size Weight
1.5 V 433.92MHz -40 to +80° C 77(L) x 39(W) x 18(H) mm 52 g

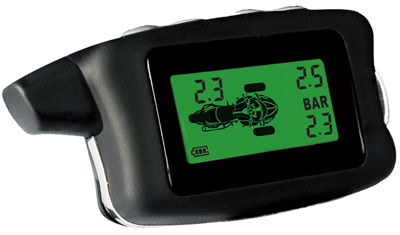

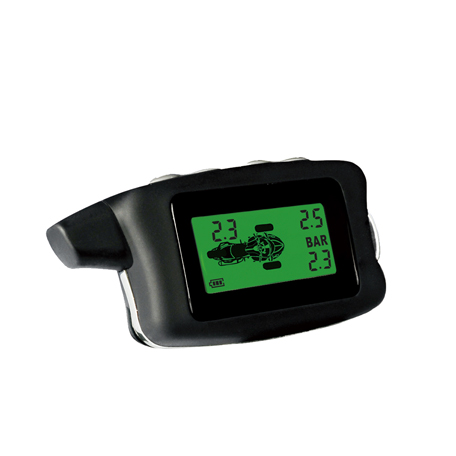

【Monitor picture】
【Sensor Features】

1、Reliable cap sensors, easy to install.

2、Water resistant.

3、Replaceable sensor batteries.

4、Sensors transmit pressure and temperature data every 5 minutes.

5、Fast leakage alert.

6、Individually coded sensors.

7、Anti-theft design.

【Sensor specifications】
Pressure range Pressure sensitivity Temperature sensitivity Transmission power Transmission frequency
0 to 6 bar, 0 to 87psi ± 0.1 bar or 1.5psi ± 3℃ < 10dBm 433.92MHz
Battery life Operating temperature Weight Size --
2 years (Sensor battery replaceable) -40 to +80° C 9 grams diameter:21 mm, height:17.5 mm --

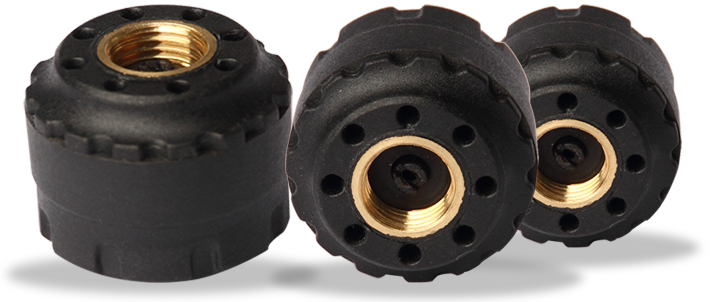

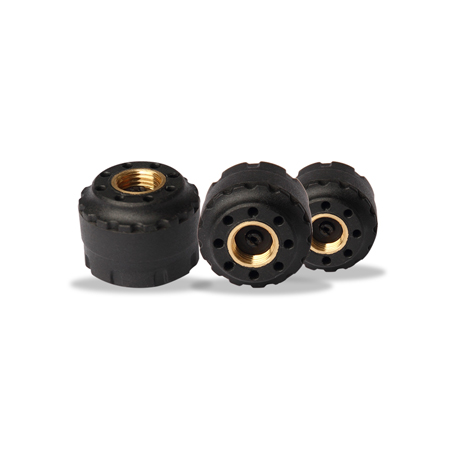

【Sensor picture】
【Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent】
