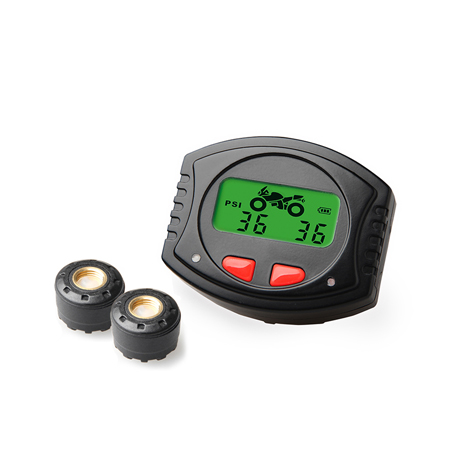

Motorcycle TPMS(M5/SU)
- 【Monitor Features】
-
1、Long battery life.
2、Reliable and easy to program.
3、LCD displays 2 tires' pressure or temperature simultaneous.
4、Pressure and temperature alert adjustable.
5、Vibration, Visible and audible alerts.
6、Selectable temperature units ( ℃ or ℉ ).
7、Long range between sensors and monitor.
8、Selectable pressure units (PSI, BAR).
9、Long range between sensors and monitor.
- 【Monitor specifications】
-
Operating voltage Frequency Operating temperature Size Weight 1.5 V 433.92MHz -40 to +80° C 77(L) x 39(W) x 18(H) mm 52 g

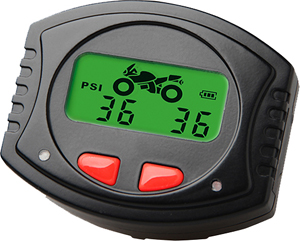

- 【Monitor picture】
-

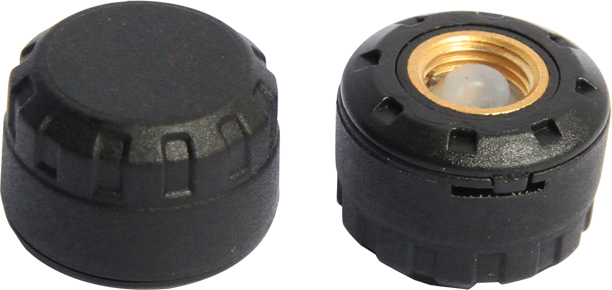

- 【Sensor Features】
-
1、Reliable cap sensors, easy to install.
2、Water resistant.
3、Replaceable sensor batteries.
4、Sensors transmit pressure and temperature data every 5 minutes.
5、Fast leakage alert.
6、Individually coded sensors.
7、Anti-theft design .
- 【Sensor specifications】
-
Pressure range Pressure sensitivity Temperature sensitivity Transmission power Transmission frequency 0 to 6 bar, 0 to 87psi ± 0.1 bar or 1.5psi ± 3℃ < 10dBm 433.92MHz Battery life Operating temperature Weight Size -- 1 years (Sensor battery replaceable) -40 to +80° C 9 grams diameter:21 mm, height:17.5 mm --
- 【Monitor picture】
- 【Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent】
